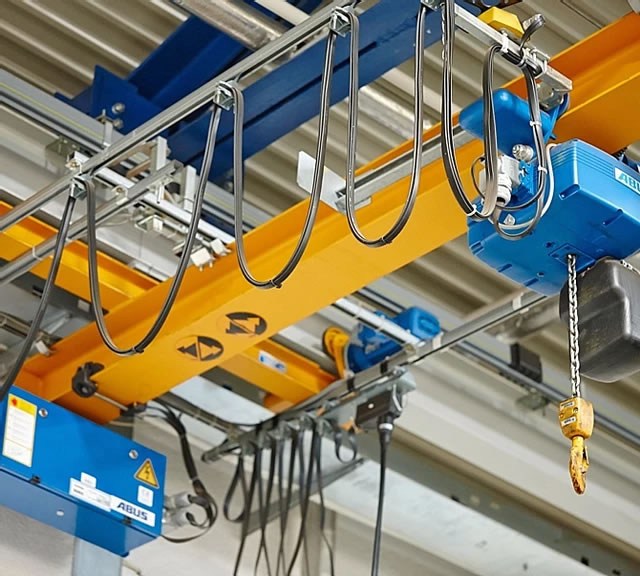

Overhead Bridge Cranes
Overhead
Bridge
Cranes
Single and double girder bridge cranes engineered for heavy industrial environments. Freestanding, ceiling-hung, and self-supporting configurations available with capacities from ¼ ton to 30+ tons and spans up to 100 feet.
¼–30T
Capacity Range
100ft+
Max Span
4
Mount Styles
Key Features & Benefits
Single & Double Girder
Both single girder (underhung) and double girder (top running) configurations available to match headroom and capacity requirements.
CMAA & OSHA Compliant
All systems engineered to meet Crane Manufacturers Association of America standards and OSHA overhead crane regulations.
Variable Speed Control
Inverter-driven bridge and trolley travel for smooth, precise positioning. Pendant or radio remote control options.
Freestanding Systems
No building attachment required. Freestanding runway systems ideal for facilities where ceiling structure is unavailable or insufficient.
Convertible End Trucks
Bridge crane kits with convertible end trucks for both underhung and top-running configurations in one package.
Custom Span & Height
Engineered to your exact bay dimensions. Spans from 10 to 100+ feet, hook heights matched to your facility.
Common Applications
Overhead bridge cranes are the backbone of heavy industrial material handling. They provide full bay coverage for loading, unloading, and positioning heavy loads anywhere within the crane's runway.
Technical Specifications
| Capacity Range | 250 lbs – 30 Ton (custom above 30T available) |
| Span Range | 10 ft – 100+ ft |
| Hook Height | 10 ft – 40 ft (custom available) |
| Mount Types | Freestanding, Self-Supporting, Ceiling Hung, Top Running, Underhung |
| Duty Classification | CMAA Class A–F (Light through Continuous) |
| Bridge Travel | Electric motorized, variable speed inverter drive |
| Controls | Pendant pushbutton or radio remote control |
| Runway | Single or double rail, customer-supplied or factory package |
| Standards | CMAA Spec #70, ASME B30.2, OSHA 1910.179 |
