Gantry Crane System
Complete Portable Solution from Crane Authority
Steel Fixed Height Gantry Cranes
Our heavy duty fixed height steel portable gantry cranes are perfect for a portable solution when a new foundation or drilling into the floor is out of the question. Easy to maneuver, let us build the perfect Gantry Crane System for you.
Adjustable Gantry designed for everyday use, gantry cranes are recommended for production, installation, and maintenance service where portability is required. Depending on the capacity, the gantry is equipped with phenolic, poly coated, or forged steel heavy duty swivel casters. All caster types feature roller bearings for ease of movement and grease fittings are included for ease of maintenance. ‘V’ Groove and flanged wheels are also available upon request.
CAPACITIES & SPANS
• Rated loads from 1/8 to 10 ton with span lengths up to 30+ feet.
FEATURES & BENEFITS
• Economical solution when portability is required
• No Foundation Requirement
• Motorization Available
OPTIONS & ACCESSORIES
• Adjustable Gantry
• Tight Wire Kit (Festooning/”Tagline”)
• Swivel Locks
• Wheel Locks
• Rigid or ‘V’ Groove Casters
• Hoist & Trolley Packages
• Motorization
Item Number | Price | Capacity | Span | Overall Ht. | Underboom Ht. | Max. Ht. | W Base Size | Caster Size | Beam Size |
511-1-08-10 | $1,979.00 | 1,000 Lbs | 8′-0” | 10′-6” | 10′-0” | 590 Lbs | 5′-6” | 2′ x 6′ | 6′ |
511-1-10-10 | $2,008.00 | 1,000 Lbs | 10′-0” | 10′-6” | 10′-0” | 610 Lbs | 5′-6” | 2′ x 6′ | 6′ |
511-1-14-10 | $2,183.00 | 1,000 Lbs | 14′-0” | 10′-6” | 10′-0” | 624 Lbs | 5′-6” | 2′ x 6′ | 6′ |
511-1-18-10 | $2,535.00 | 1,000 Lbs | 18′-0” | 10′-8” | 10′-0” | 930 Lbs | 6′-6” | 2′ x 6′ | 8′ |
511-1-16-10 | $2,535.00 | 1,000 Lbs | 16′-0” | 10′-8” | 10′-0” | 910 Lbs | 6′-6” | 2′ x 6′ | 8′ |
511-1-20-10 | $2,535.00 | 1,000 Lbs | 20′-0” | 10′-8” | 10′-0” | 950 Lbs | 6′-6” | 2′ x 6′ | 8′ |
511-1-12-10 | $2,034.00 | 1,000Lbs | 12′-0” | 10′-6” | 10′-0” | 622 Lbs | 5′-6” | 2′ x 6′ | 6′ |
511-2-08-10 | $1,920.00 | 2,000 Lbs | 8′-0” | 10′-8” | 10′-0” | 665 Lbs | 5′-6” | 2′ x 6′ | 8′ |
511-2-10-10 | $1,974.00 | 2,000 Lbs | 10′-0” | 10′-8” | 10′-0” | 685 Lbs | 5′-6” | 2′ x 6′ | 8′ |
511-2-12-10 | $2,030.00 | 2,000 Lbs | 12′-0” | 10′-8” | 10′-0” | 705 Lbs | 5′-6” | 2′ x 6′ | 8′ |
511-2-14-10 | $2,042.00 | 2,000 Lbs | 14′-0” | 10′-8” | 10′-0” | 725 Lbs | 5′-6” | 2′ x 6′ | 8′ |
511-2-16-10 | $2,322.00 | 2,000 Lbs | 16′-0” | 10′-8” | 10′-0” | 745 Lbs | 6′-6” | 2′ x 6′ | 8′ |
511-2-18-10 | $2,752.00 | 2,000 Lbs | 18′-0” | 10′-10” | 10′-0” | 1,030 Lbs | 6′-6” | 2′ x 6′ | 10′ |
511-2-20-10 | $2,875.00 | 2,000 Lbs | 20′-0” | 10′-10” | 10′-0” | 1,080 Lbs | 6′-6” | 2′ x 6′ | 10′ |
511-4-08-10 | $2,440.00 | 4,000 Lbs | 8′-0” | 10′-8” | 10′-0” | 810 Lbs | 5′-6” | 3′ x 8′ | 8′ |
511-4-10-10 | $2,493.00 | 4,000 Lbs | 10′-0” | 10′-8” | 10′-0” | 730 Lbs | 5′-6” | 3′ x 8′ | 8′ |
511-4-12-10 | $2,549.00 | 4,000 Lbs | 12′-0” | 10′-8” | 10′-0” | 750 Lbs | 5′-6” | 3′ x 8′ | 8′ |
511-4-14-10 | $2,994.00 | 4,000 Lbs | 14′-0” | 10′-10” | 10′-0” | 920 Lbs | 5′-6” | 3′ x 8′ | 10′ |
511-4-16-10 | $3,069.00 | 4,000 Lbs | 16′-0” | 10′-10” | 10′-0” | 970 Lbs | 6′-6” | 3′ x 8′ | 10′ |
511-4-18-10 | $3,678.00 | 4,000 Lbs | 18′-0” | 10′-10” | 10′-0” | 1,020 Lbs | 6′-6” | 3′ x 8′ | 10′ |
511-4-20-10 | $3,928.00 | 4,000 Lbs | 20′-0” | 10′-12” | 10′-0” | 1,275 Lbs | 6′-6” | 3′ x 8′ | 12′ |
511-6-08-10 | $3,443.00 | 6,000 Lbs | 8′-0” | 10′-10” | 10′-0” | 1,000 Lbs | 5′-6” | 3′ x 8′ | 10′ |
511-6-14-10 | $3,632.00 | 6,000 Lbs | 14′-0” | 10′-10” | 10′-0” | 1,200 Lbs | 5′-6” | 3′ x 8′ | 10′ |
511-6-12-10 | $3,642.00 | 6,000 Lbs | 12′-0” | 10′-10” | 10′-0” | 1,100 Lbs | 5′-6” | 3′ x 8′ | 10′ |
511-6-16-10 | $3,918.00 | 6,000 Lbs | 16′-0” | 10′-10” | 10′-0” | 1,250 Lbs | 6′-6” | 3′ x 8′ | 10′ |
511-6-18-10 | $4,189.00 | 6,000 Lbs | 18′-0” | 10′-12” | 10′-0” | 1,550 Lbs | 6′-6” | 3′ x 8′ | 12′ |
511-6-20-10 | $4,439.00 | 6,000 Lbs | 20′-0” | 10′-12” | 10′-0” | 1,610 Lbs | 6′-6” | 3′ x 8′ | 12′ |
511-6-10-10 | $3,543.00 | 6.000 Lbs | 10′-0” | 10′-10” | 10′-0” | 1,050 Lbs | 5′-6” | 3′ x 8′ | 10′ |
Steel Adjustable Gantry Cranes
Our heavy duty adjustable height steel gantry cranes are perfect for a portable gantry solution when a new foundation or drilling into the floor is out of the question. Easy to maneuver and adjustable in height, let us build the perfect portable steel gantry solution for you. Designed for everyday use, gantry cranes are recommended for production, installation, and maintenance service where portability is required. Depending on the capacity, the gantry is equipped with phenolic, poly coated, or forged steel heavy duty swivel casters. All caster types feature roller bearings for ease of movement. Grease fittings are included for ease of maintenance. ‘V’ Groove and flanged wheels are also available upon request.
CAPACITIES & SPANS
• Rated loads up to 5+ ton
• Span lengths up to 25+ feet
• Heights up to 25+ feet
FEATURES & BENEFITS
• Adjustable Height and Span
• Economical solution when portability is required
• No Foundation Requirement
• Motorization available
OPTIONS & ACCESSORIES
• Tight Wire Kit (Festooning/”Tagline”)
• Swivel Locks
• Wheel Locks
• Rigid or ‘V’ Groove Casters
• Hoist & Trolley Packages
• Motorization
Item Number | Price | Capacity | Span | W Base Size | Min. Height | Maximum Ht. | Caster Size | Beam Size |
512-2-10-07 | $1,924.00 | 2,000 Lbs | 10′ | 48′ | 4′-4” | 7′-0” | 2′ x 6′ | 8′ |
512-2-10-09 | $2,068.00 | 2,000 Lbs | 10′ | 60′ | 5′-4” | 9′-0” | 2′ x 6′ | 8′ |
512-2-10-10 | $2,212.00 | 2,000 Lbs | 10′ | 66′ | 6′-5” | 10′-0” | 2′ x 6′ | 8′ |
512-2-10-12 | $2,358.00 | 2,000 Lbs | 10′ | 78′ | 7′-5” | 12′-0” | 2′ x 6′ | 8′ |
512-2-10-14 | $2,502.00 | 2,000 Lbs | 10′ | 90′ | 8′-5” | 14′-0” | 2′ x 6′ | 8′ |
512-4-10-07 | $2,645.00 | 4,000 Lbs | 10′ | 48′ | 5′-1” | 7′-0” | 3′ x 8′ | 8′ |
512-4-10-09 | $2,727.00 | 4,000 Lbs | 10′ | 60′ | 5′-4” | 9′-0” | 3′ x 8′ | 8′ |
512-4-10-10 | $2,870.00 | 4,000 Lbs | 10′ | 66′ | 5′-10” | 10′-0” | 3′ x 8′ | 8′ |
512-4-10-12 | $2,982.00 | 4,000 Lbs | 10′ | 78′ | 7′-9” | 12′-0” | 3′ x 8′ | 8′ |
512-4-10-14 | $3,125.00 | 4,000 Lbs | 10′ | 90′ | 8′-9” | 14′-0” | 3′ x 8′ | 8′ |
512-6-10-07 | $3,269.00 | 6,000 Lbs | 10′ | 48′ | 4′-4” | 7′-0” | 3′ x 8′ | 10′ |
512-6-10-09 | $3,413.00 | 6,000 Lbs | 10′ | 60′ | 5′-4” | 9′-0” | 3” x’8” | 10′ |
512-6-10-10 | $4,022.00 | 6,000 Lbs | 10′ | 66′ | 6′-11” | 10′-0” | 3′ x 8′ | 10′ |
512-6-10-12 | $4,215.00 | 6,000 Lbs | 10′ | 78′ | 7′-11” | 12′-0” | 3′ x 8′ | 10′ |
512-6-10-14 | $4,269.00 | 6,000 Lbs | 10′ | 90′ | 8′-11” | 14′-0” | 3′ x 8′ | 10′ |

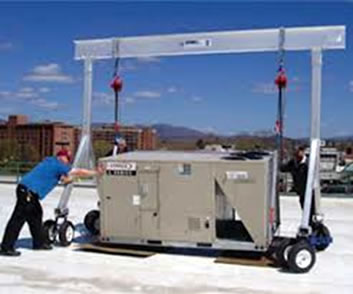

Aluminum Adjustable Gantry Cranes
Our lightweight portable aluminum gantry cranes are perfect for an ultra-portable solution when ease of movement and quick assembly/disassembly are important. When reliability and portability are important; this is your workhorse to get the job done. Gantry Crane System designed for everyday use, gantry cranes are recommended for production, installation, and maintenance service where portability is required. Depending on the capacity, the gantry is equipped with phenolic, poly coated, or forged steel heavy duty swivel casters. All caster types feature roller bearings for ease of movement and grease fittings are included for ease of maintenance. ‘V’ Groove and flanged wheels are also available upon request.
CAPACITIES & SPANS
• Rated loads up to 2 ton with
• Span/Heights up to 20+ feet.
FEATURES & BENEFITS
• Lightweight and easy to assemble/disassemble
• Economical solution when portability is required
• No Foundation Requirement
OPTIONS & ACCESSORIES
• Tight Wire Kit (Festooning/”Tagline”)
• Swivel Locks
• Wheel Locks
• Rigid or ‘V’ Groove Casters
• Hoist & Trolley Packages
• Motorization
Item Number | Price | Capacity | Overall Span | Min. Height | Maximum Height |
.5ALU0809 | $3,175 | 1,000 lbs. | 8′ | 6′-6″ | 9′-0″ |
.5ALU0811 | $3,563 | 1,000 lbs. | 8′ | 8′-6″ | 11′-0″ |
.5ALU1009 | $3,888 | 1,000 lbs. | 10′ | 6′-6″ | 9′-0″ |
.5ALU1011 | $4,138 | 1,000 lbs. | 10′ | 8′-6″ | 11′-0″ |
.5ALU1209 | $3,935 | 1000 lbs. | 12′ | 6′-6″ | 9′-0″ |
.5ALU1211 | $3,938 | 1,000 lbs. | 12′ | 8′-6″ | 11′-0″ |
.5ALU1509 | $4,044 | 1,000 lbs. | 15′ | 6′-6″ | 9′-0″ |
.5ALU1511 | $4,154 | 1,000 lbs. | 15′ | 8′-6″ | 11′-0″ |
1ALU0808 | $4,273 | 2,000 lbs. | 8′ | 5′-7″ | 8′-1″ |
1ALU0810 | $4,323 | 2,000 lbs. | 8′ | 7′-7″ | 10′-1″ |
1ALU0812 | $4,372 | 2,000 lbs. | 8′ | 9′-7″ | 12′-1″ |
1ALU1008 | $4,493 | 2,000 lbs. | 10′ | 5′-7″ | 8′-1″ |
1ALU1010 | $4,605 | 2,000 lbs. | 10′ | 7′-7″ | 10′-1″ |
1ALU1012 | $5,042 | 2,000 lbs. | 10′ | 9′-7″ | 12′-1″ |
1ALU1208 | $5,052 | 2,000 lbs. | 12′ | 5′-7″ | 8′-1″ |
1ALU1210 | $5,053 | 2,000 lbs. | 12′ | 7′-7″ | 10′-1″ |
1ALU1212 | $5,160 | 2,000 lbs. | 12′ | 9′-7″ | 12′-1″ |
1ALU1508 | $5,438 | 2,000 lbs. | 15′ | 5′-7″ | 8′-1″ |
1ALU1510 | $5,494 | 2,000 lbs. | 15′ | 7′-7″ | 10′-1″ |
1ALU1512 | $5,518 | 2,000 lbs. | 15′ | 9′-7″ | 12′-1″ |
1ALU1808 | $5,735 | 2,000 lbs. | 18′ | 5′-10″ | 8′-4″ |
1ALU1810 | $6,004 | 2,000 lbs. | 18′ | 7′-10″ | 10′-4″ |
1ALU1812 | $6,163 | 2,000 lbs. | 18′ | 9′-10″ | 12′-4″ |
1ALU2008 | $6,405 | 2,000 lbs. | 20′ | 5′-10″ | 8′-4″ |
1ALU2010 | $6,414 | 2,000 lbs. | 20′ | 7′-10″ | 10′-4″ |
1ALU2012 | $6,880 | 2,000 lbs. | 20′ | 9′-10″ | 12′-4″ |
2ALU0808 | $7,037 | 4,000 lbs. | 8′ | 5′-10″ | 8′-4″ |
2ALU0810 | $7,083 | 4,000 lbs. | 8′ | 7′-10″ | 10′-4″ |
2ALU0812 | $7,098 | 4,000 lbs. | 8′ | 9′-10″ | 12′-4″ |
2ALU1008 | $7,304 | 4,000 lbs. | 10′ | 5′-10″ | 8′-4″ |
2ALU1010 | $7,478 | 4,000 lbs. | 10′ | 7′-10″ | 10′-4″ |
2ALU1012 | $7,515 | 4,000 lbs. | 10′ | 9′-10″ | 12′-4″ |
2ALU1208 | $7,522 | 4,000 lbs. | 12′ | 5′-10″ | 8′-4″ |
2ALU1210 | $7,767 | 4,000 lbs. | 12′ | 7′-10″ | 10′-4″ |
2ALU1212 | $7,808 | 4,000 lbs. | 12′ | 9′-10″ | 12′-4″ |
2ALU1508 | $7,998 | 4,000 lbs. | 15′ | 5′-10″ | 8′-4″ |
2ALU1810 | $8,027 | 4,000 lbs. | 15′ | 7′-10″ | 10′-4″ |
2ALU1812 | $8,148 | 4,000 lbs. | 15′ | 9′-10″ | 12′-4″ |
3ALU0808 | $8,192 | 6,000 lbs. | 8′ | 6′-2″ | 8′-2″ |
3ALU0810 | $8,249 | 6,000 lbs. | 8′ | 7′-8″ | 10′-2″ |
3ALU0812 | $8,509 | 6,000 lbs. | 8′ | 9′-8″ | 12′-2″ |
3ALU1008 | $8,833 | 6,000 lbs. | 10′ | 6′-2″ | 8′-2″ |
3ALU1010 | $8,918 | 6,000 lbs. | 10′ | 7′-8″ | 10′-2″ |
3ALU1012 | $9,180 | 6,000 lbs. | 10′ | 9′-8″ | 12′-2″ |
3ALU1208 | $9,314 | 6,000 lbs. | 12′ | 6′-2″ | 8′-2″ |
3ALU1210 | $9,692 | 6,000 lbs. | 12′ | 7′-8″ | 10′-2″ |
3ALU1212 | $10,077 | 6,000 lbs. | 12′ | 9′-8″ | 12′-2″ |
3ALU1508 | $10,497 | 6,000 lbs. | 15′ | 6′-2″ | 8′-2″ |
3ALU1510 | $10,590 | 6,000 lbs. | 15′ | 7′-8″ | 10′-2″ |
3ALU1512 | $11,397 | 6,000 lbs. | 15′ | 9′-8″ | 12′-2″ |
