Hoists

Get Easier Material Handling from Crane Authority like Push Trolley Hoist

We are overhead Hoist and Crane Specialists that offer many different brands of Hoists Cranes & Trolleys, capacities, lifts, and options for hoists including air hoist, chain hoist, electric hoist, electric chain hoist, electric hoist trolley, electric winch hoist, electric cable hoist, manual chain hoist, hand trolley, rope hoists, cable hoists, push trolley hoist, I beam hoist, engine hoist, jib crane hoist, gantry hoist, custom hoist, Harrington hoist, Coffing hoist, Acco hoist, and Shopstar hoist.  Not all of our hoist, trolley, winch or slings are on our online store.  If you don’t see exactly what you are looking for, chances are we can help!

Your Own Overhead Crane Company

Crane Authority is always here to share our experience and advice to help solve customers’ crane and hoist dilemmas.

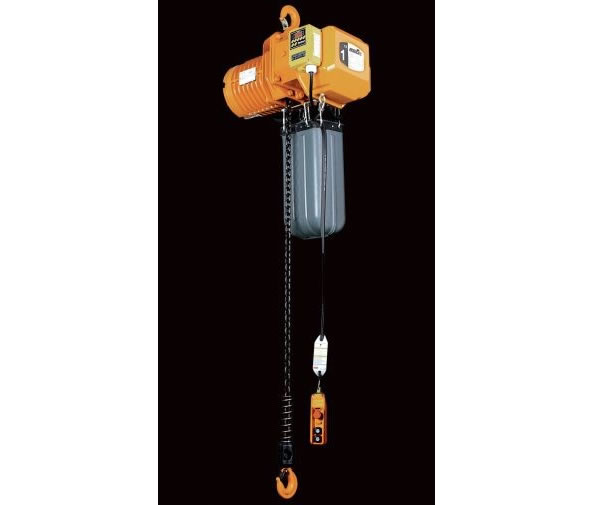

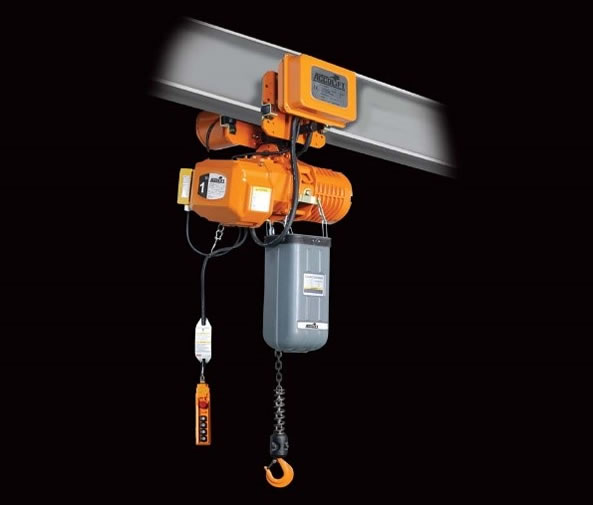

Acco Hoists

Acco Hoists are supplied with 20’ of lift and a chain container.  Stand Power supply cord is 15’. Special lengths of load chain, push-button cord, power supply cables or power supply systems are available upon request. Most units can ship in 1 to 2 days.  Hoists can come with Variable 2-Speed. Dual Brake System.  Acco hoist have: Upper and Lower Limit Switch, Overload Alert, Push Button Controls, Heavy-Duty Hoist Motor rated for 30-minute duty,Load Sheave / Chain Guide,Grade 80 load chain

CapacityModel Lift SpeedLiftHook Mounted PricePush Trolley Price Motorized Trolley Price
1/2 Ton233001014 FPM20′-0″$2,232.00$2,625.00$3,957.00
1 Ton 213002017 FPM20′-0″$2,225.00$3,010.00$4,200.00
1 Ton 213003027 FPM20′-0″$3,015.00$3,250.00$4,912.00
2 Ton213004013 FPM 20′-0″$3,082.00$3,375.00$5,220.00
2 Ton213005027 FPM20′-0″ $3,995.00$4,188.00$6,188.00
3 Ton213006017 FPM20′-0″$3,975.00$4,688.00$6,695.00
5 Ton213007011 FPM20′-0″$5,805.00$6,625.00$8,990.00
7.5 Ton21300757 FPM20′-0″$7,620.00N/A$11,350.00
10 Ton213008011 FPM20′-0″$11,500.00NA$14,437.00
Coffing JLC Hoists

Coffing Hoists all come with a chain container.  Special lengths of load chain, push-button cord, power supply cables or power supply systems are available upon request.  5-pocket load sheave increases chain and sheave engagement 25% over hoists with conventional 4-pocket sheaves, provides smoother lifting and reduces chain wear. Adjustable limit switches regulate upper and lower load travel. Stainless steel limit switch shaft standard. Lifetime Warranty.

CapacityModel Lift SpeedLiftHook Mounted PricePush Trolley Price Motorized Trolley Price
1/4 TonJLC0516-1032 FPM10′-0″$2,150.00$2,370.00$4,755.00
1/4 TonJLC0516-1532 FPM15′-0″$2,270.00$2,490.00$4,874.00
1/2 TonJLC1016-1016 FPM10′-0″$2,282.00$2,510.00$4,485.00
1/2 TonJLC1016-1516 FPM15′-0″$2,405.00$2,620.00$5,010.00
1 TonJLC2016-1016 FPM10′-0″ $2,545.00$2,763.00$5,150.00
1 TonJLC2016-1516 FPM15′-0″$2,665.00$2,885.00$5,270.00
2 TonJLC4008-108 FPM10′-0″$3,020.00$3,415.00$5,622.00
2 TonJLC4008-158 FPM15′-0″$3,230.00$3,450.00$5,834.00
CM Shopstar Hoist

The CM ShopStar electric chain hoist is built for rugged industrial and commercial use. This durable hoist features high H4 duty cycles and a compact design ideal for use at workstations and production lines. Standard overload device protects the hoist, operator and surrounding structure from damaging overloads. Equipped with a NEMA 4 industrial rated control station and the industry’s best lifetime warranty. Its compact size makes it easy to incorporate into small work areas.

CapacityModel Lift SpeedLiftHook Mounted PricePush Trolley Price Motorized Trolley Price
250 lbs.207216 FPM10′-0″$1,520.00$1,690.00$4,065.00
250 lbs.207724 FPM10′-0″$1,550.00$1,725.00$4,110.00
300 lbs. 202916 FPM10′-0″$1,520.00$1,690.00$4,075.00
300 lbs. 208724 FPM10′-0″$1,550.00$1,725.00$4,110.00
500 lbs.209712 FPM10′-0″$1,810.00$1,975.00$4,360.00
500 lbs.209216 FPM10′-0″$1,840.00$2,015.00$4,390.00
500 lbs.208420 FPM10′-0″$1,810.00$1,975.00$4,360.00
600 lbs.20388 FPM10′-0″$1,745.00$1,915.00$4,295.00
600 lbs.210712 FPM10′-0″$1,780.00$1,945.00$4,330.00
600 lbs.211420 FPM10′-0″$1,810.00$1,980.00$4,355.00
1000 lbs.21126 FPM10′-0″$1,980.00$2,135.00$4,520.00
1000 lbs.21178 FPM10′-0″$1,975.00$2,145.00$4,530.00
1000 lbs.212112 FPM10′-0″$1,995.00$2,170.00$4,495.00

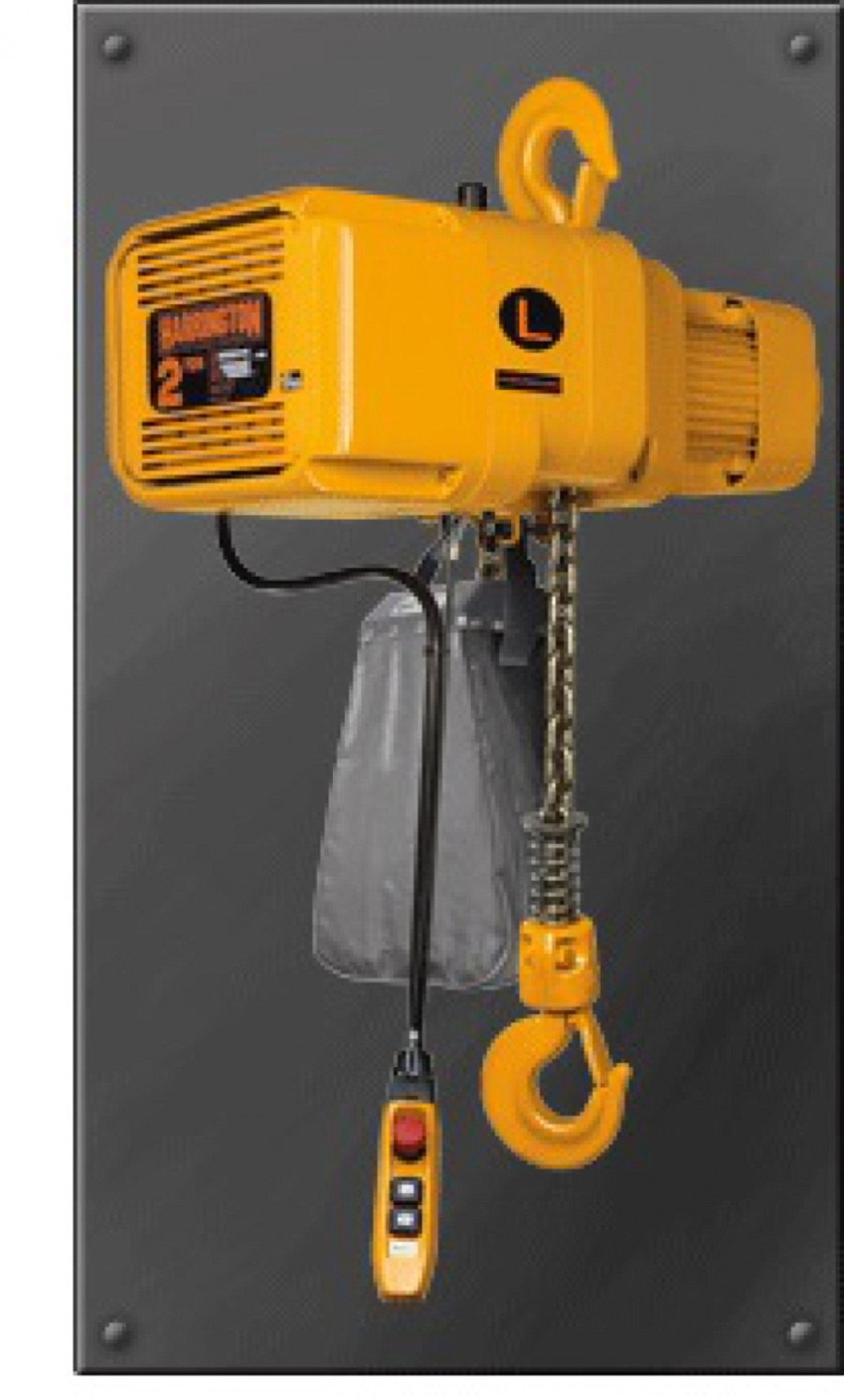

Harrington Hoists

All Harrington Hoists are supplied with a chain container.  Stand Power supply cord is 15’. Special lengths of load chain, push-button cord, power supply cables or power supply systems are available upon request.  Harrington load chain is case-hardened Grade 80 chain. 2-Speed Variable units, Manual hoists, Food Grade and Air Hoists are also available. Harrington Hoists, Inc. is ISO 9001:2008 certified. All models include a low headroom, lightweight body with a fan-cooled motor, standard thermal motor protection and a count hour meter for preventive maintenance. The Guardian” Smart Brake Technology revolutionary DC current motor brake with electrical failsafe design and 10 year warranty.

CapacityModel Lift SpeedLiftHook Mounted PricePush Trolley Price Motorized Trolley Price
1/4 TonNER003S36 FPM10′-0″$2,110.00$2,250.00$4,640.00
1/4 TonNER003H53 FPM10′-0″$2,825.00$2,965.00$5,430.00
1/2 TonNER005L15 FPM10′-0″$2,210.00$2,350.00$4,620.00
1/2 TonNER005S29 FPM10′-0″$2,470.00$2,610.00$5,010.00
1 TonNER010L14 FPM10′-0″ $2,215.00$2,670.00$4,885.00
1 TonNER010S28 FPM10′-0″$3,430.00$3,620.00$5,820.00
2 TonNER020C7 FPM10′-0″$2,025.00$3,075.00$5,585.00
2 TonNER020L14 FPM10′-0″$3,395.00$3,670.00$6,140.00
